SAG | Profile Frame Doors

Compact Euro dimensions: SAG Mortise locks for profile frame doors

SAG Tubular frame locks are extremely compact thanks to the adjustment of the lock case height and thickness. These dimensions are also part of DIN 18251-2. SAG Mortise locks for profile frame doors are fitted with the following as standard:

• Nut storage
  for increased lifespan
• Bolt with integrated lubrication channel
• Rear falling bevel
  to make the door easier to close
• Fastening openings
  for safety rosettes with a standard distance of 30mm backset.

Supplementary equipment:

• Clamp nut for secure latchkey fit

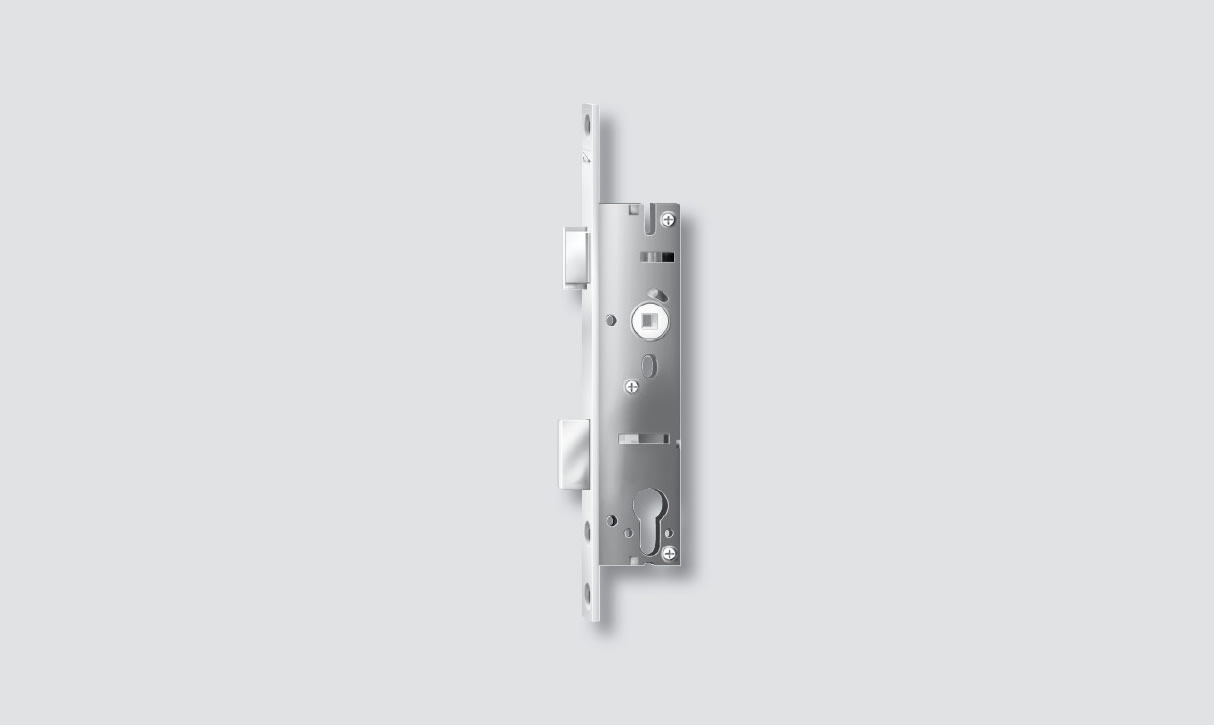

SAG Falling deadbolt lock for profile frame doors # 1 8405W0
SAG Compact class falling deadbolt lock in accordance with DIN 18251-2, class 1 for profile frame inner doors, PZW, 92mm distance; can be used on right and left thanks to rotating latch, backset 18-60mm, flat cuff 24 x 3 mm (16 / 18 / 20 / 22 mm)

Technical drawing #1 8405W0
